SV-Plus Airless Spray Gun
SV-Plus Airless Spray Gun

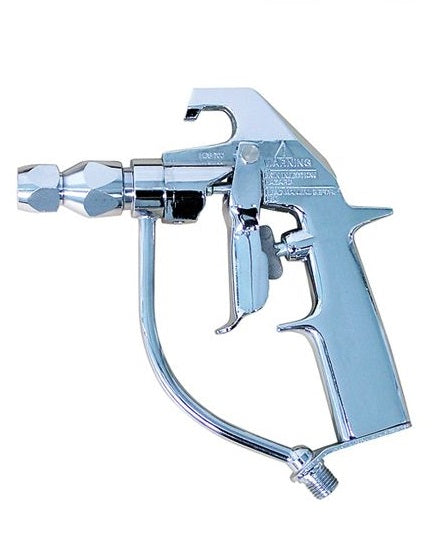

The Handok SV-Plus is a slim, light airless spray gun rated to 6,525 psi (450 bar), with easy control and maintenance. Stainless steel wetted parts and a stainless fluid tube let it spray heavier materials such as high-solids coatings.
Regular price
$398.00
Regular price
Sale price
$398.00
Quantity
In the box
- SV-Plus spray gun (HDS-700), 2-Finger trigger
- Tip guard (HD107)
- Tip filter (HDF60)
Specifications
| Brand | Handok |
|---|---|
| Mfr. Model | HDS-700 |
| Product Type | Manual airless spray gun |
| Spray Technology | Airless |
| Trigger Type | 2-Finger |
| Max Working Pressure | 6,525 psi (450 bar) |
| Weight | 1.1 lb (500 g) |
| Wetted Parts | Stainless steel |
| Fluid Tube | Stainless steel |
| Fluid Inlet | 1/4" NPT |
| Tip Guard Thread | 7/8" G |
| Tip Compatibility | Flat and reversible tips |
| Compatible Fluids | Industrial protective coatings, high-solids coatings |
| Repair Kit | SP-200 |
| Brand | Handok |
|---|---|
| Mfr. Model | HDS-700 |
| Product Type | Manual airless spray gun |
| Spray Technology | Airless |
| Trigger Type | 4-Finger |
| Max Working Pressure | 6,525 psi (450 bar) |
| Weight | 1.1 lb (500 g) |
| Wetted Parts | Stainless steel |
| Fluid Tube | Stainless steel |
| Fluid Inlet | 1/4" NPT |
| Tip Guard Thread | 7/8" G |
| Tip Compatibility | Flat and reversible tips |
| Compatible Fluids | Industrial protective coatings, high-solids coatings |
| Repair Kit | SP-200 |
Parts
Hover or select a drawing number or table row to highlight the matching part.
| No. | Part No. | Description | Qty |
|---|---|---|---|
| 200-001 | Washer | 1 | |
| 200-002 | Seat | 1 | |
| 200-003 | Gasket | 1 | |
| 200-004 | Needle Assembly | 1 | |
| 200-005 | Housing | 1 | |
| 200-006 | Trigger | 1 | |
| 200-007 | Screw | 1 | |
| 200-008 | Pin | 1 | |
| 200-009 | Pin | 1 | |
| 200-010 | Body | 1 | |
| 200-011 | Screw | 1 | |
| 200-012 | Trigger Stop Assembly | 1 | |
| 200-013 | Screw | 2 |
* Included in SP-200 repair kit
