Glass Bead Spray Gun
Glass Bead Spray Gun

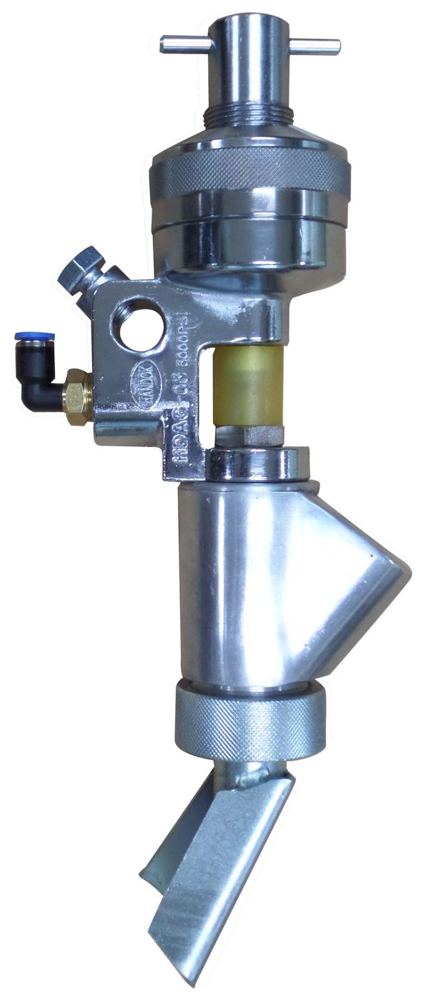

The Handok Glass Bead Gun (HAG-053) is built to dispense a high volume of glass beads. It has a light, compact design, an adjustable needle distance for precise work, and easy control and maintenance. The standard size 6 seat nozzle can be swapped for size 5, 7 or 8. Used for applying glass beads in road marking.
Regular price
$588.00
Regular price
Sale price
$588.00
Quantity
In the box
- Glass Bead Gun (HAG-053)
Specifications
| Brand | Handok |
|---|---|
| Mfr. Model | HAG-053 |
| Product Type | Glass bead gun |
| Action | Single action |
| Working Pressure | 174 psi (12 bar) |
| Standard Seat Nozzle | Size 6 |
| Optional Seat Nozzles | Sizes 5, 7, 8 |
| Needle | Adjustable needle distance |
| Application | High-volume glass bead dispensing |
| Repair Kit | GB600 |
| Brand | Handok |
|---|---|

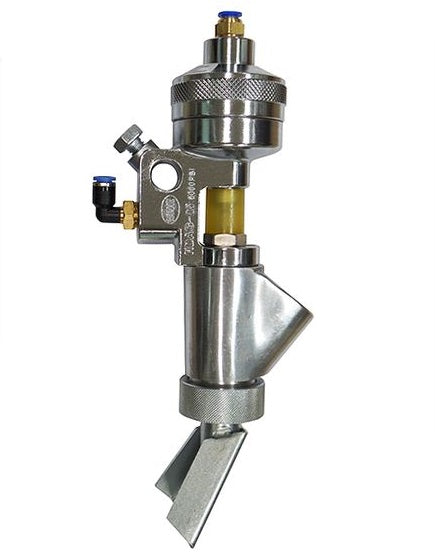

| Mfr. Model | HAG-053 DA |
| Product Type | Glass bead gun |
| Action | Double acting |
| Recommended Air Operating Pressure | 2.5 to 5 kg/cm² (approx. 36 to 71 psi) |
| Working Pressure | 174 psi (12 bar) |
| Standard Seat Nozzle | Size 6 |
| Optional Seat Nozzles | Sizes 5, 7, 8 |
| Needle | Adjustable needle distance |
| Application | High-volume glass bead dispensing |
| Repair Kit | GB-600 (DA) |

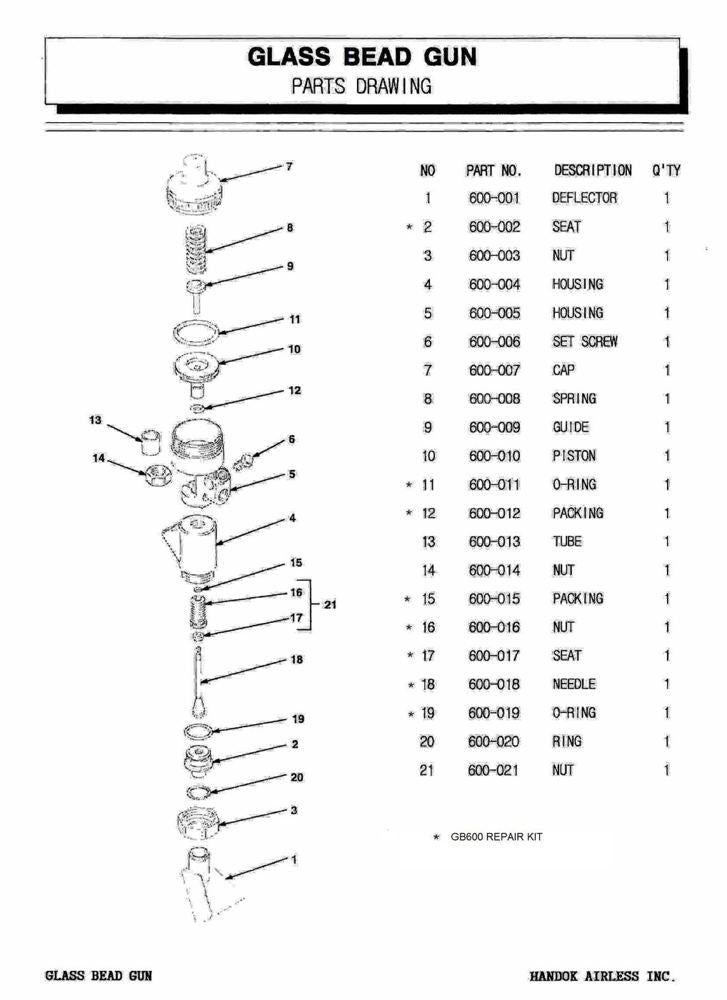

Parts
| No. | Part No. | Description | Qty |
|---|---|---|---|
| 600-001 | Deflector | 1 | |
| 600-002 | Seat | 1 | |
| 600-003 | Nut | 1 | |
| 600-004 | Housing | 1 | |
| 600-005 | Housing | 1 | |
| 600-006 | Set Screw | 1 | |
| 600-007 | Cap | 1 | |
| 600-008 | Spring | 1 | |
| 600-009 | Guide | 1 | |
| 600-010 | Piston | 1 | |
| 600-011 | O-Ring | 1 | |
| 600-012 | Packing | 1 | |
| 600-013 | Tube | 1 | |
| 600-014 | Nut | 1 | |
| 600-015 | Packing | 1 | |
| 600-016 | Nut | 1 | |
| 600-017 | Seat | 1 | |
| 600-018 | Needle | 1 | |
| 600-019 | O-Ring | 1 | |
| 600-020 | Ring | 1 | |
| 600-021 | Nut | 1 |
Double Acting cap parts
Hover or select a drawing number or table row to highlight the matching part.
| No. | Part No. | Description | Qty |
|---|---|---|---|
| 360-001 | Adaptor (size 8) | 1 | |
| 360-002 | Cap | 1 | |
| 360-003 | O-Ring | 1 | |
| 360-004 | Guide | 1 | |
| 360-005 | O-Ring | 2 | |
| 360-006 | Spring | 1 |
* Included in GB600 repair kit
