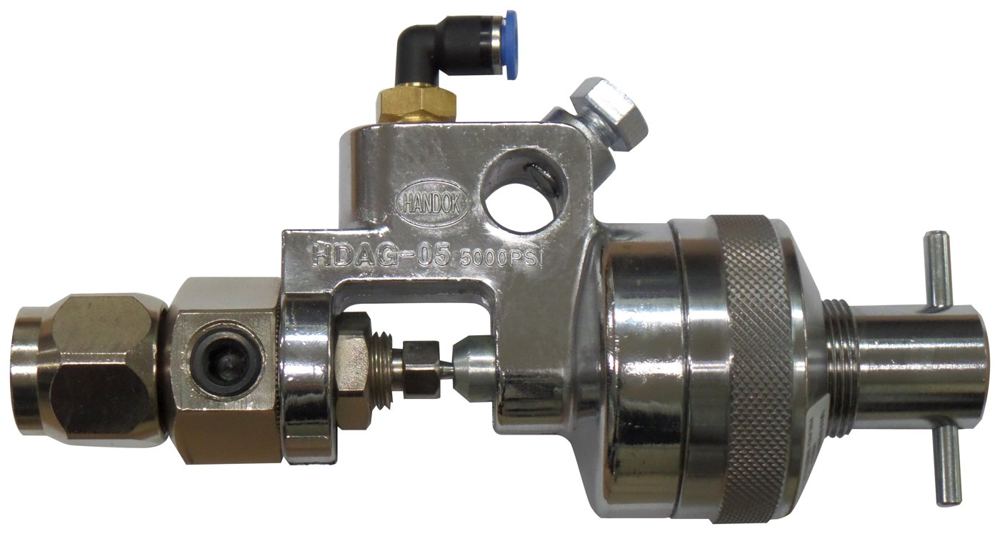

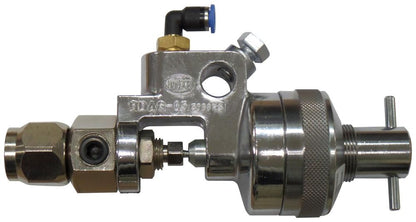

The Handok Auto Gun (HAG-05) is an air-actuated automatic spray gun for medium viscosity materials such as water-borne and oil paints. Light and compact, made of stainless steel, with adjustable needle distance for precise work. Used for road marking, and also adaptable to precise automatic systems with robots and reciprocators. Air-actuated trigger, airless atomization.
Regular price
$468.00
Regular price
Sale price
$468.00
Quantity
In the box
- Auto Gun (HAG-05)
- Nut (300-021)
- Gasket (300-019)
- Adaptor (300-018)
Specifications
| Brand | Handok |
|---|---|
| Mfr. Model | HAG-05 |
| Product Type | Automatic airless spray gun |
| Actuation | Air actuated |
| Action | Single action |
| Max Working Pressure | 5,076 psi (350 bar) |
| Body Material | Stainless steel |
| Compatible Fluids | Medium viscosity: water-borne and oil paint |
| Inlets | Two 1/4" NPT |
| Tip Compatibility | Standard HETC flat tips |
| Needle | Adjustable needle distance |
| Automation | Robot and reciprocator compatible |
| Repair Kit | AT-300 |
| Brand | Handok |
|---|---|

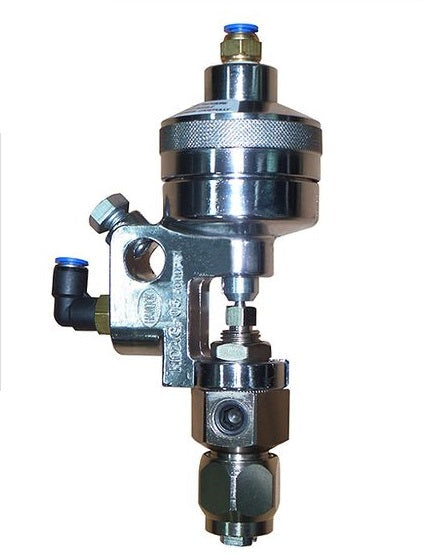

| Mfr. Model | HAG-05 DA |
| Product Type | Automatic airless spray gun |
| Actuation | Air actuated |
| Action | Double acting |
| Recommended Air Operating Pressure | 2.5 to 5 kg/cm² (approx. 36 to 71 psi) |
| Max Working Pressure | 5,076 psi (350 bar) |
| Body Material | Stainless steel |
| Compatible Fluids | Medium viscosity: water-borne and oil paint |
| Inlets | Two 1/4" NPT |
| Tip Compatibility | Standard HETC flat tips |
| Needle | Adjustable needle distance |
| Automation | Robot and reciprocator compatible |
| Repair Kit | AT-300 (DA) |
Parts
Hover or select a drawing number or table row to highlight the matching part.
| No. | Part No. | Description | Qty |
|---|---|---|---|
| 300-001 | Screw | 1 | |
| 300-002 | Plug | 1 | |
| 300-003 | Nut | 1 | |
| 300-004 | O-Ring | 1 | |
| 300-005 | O-Ring | 1 | |
| 300-006 | Adaptor | 1 | |
| 300-007 | Nut | 1 | |
| 300-008 | Pin | 1 | |
| 300-009 | Screw | 1 | |
| 300-010 | Cap | 1 | |
| 300-011 | Spring | 1 | |
| 300-012 | Guide | 1 | |
| 300-013 | Piston | 1 | |
| 300-014 | Body | 1 | |
| 300-015 | Gland | 1 | |
| 300-016 | Head | 1 | |
| 300-017 | Packing | 3 | |
| 300-018 | Adaptor | 1 | |
| 300-019 | Gasket | 1 | |
| 300-020 | Gasket | 1 | |
| 300-021 | Nut | 1 | |
| 300-022 | Needle | 1 | |
| 300-023 | Seat | 1 |
Double Acting cap parts
Hover or select a drawing number or table row to highlight the matching part.
| No. | Part No. | Description | Qty |
|---|---|---|---|
| 360-001 | Adaptor (size 8) | 1 | |
| 360-002 | Cap | 1 | |
| 360-003 | O-Ring | 1 | |
| 360-004 | Guide | 1 | |
| 360-005 | O-Ring | 2 | |
| 360-006 | Spring | 1 |
Repair kit: AT-300.
