Auto Spray Gun - High Viscosity
Auto Spray Gun - High Viscosity

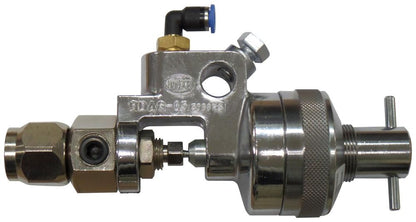

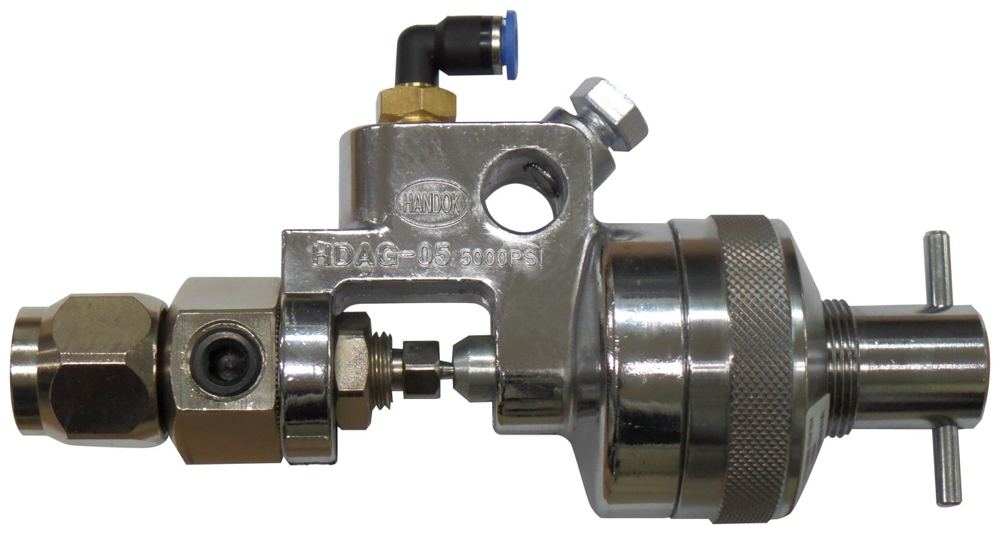

The Handok Auto Gun (HAG-051) is an automatic gun for high viscosity materials such as sealant, adhesive, grease and PVC sol. It is normally used with high-pressure extrusion pumps, and its ball and seat are made of hard metal. The nozzle hole size can be changed to suit the job. Also adaptable to precise automatic systems with robots and reciprocators. Air-actuated trigger, airless atomization.
Regular price
$488.00
Regular price
Sale price
$488.00
Quantity
In the box
- Auto Gun (HAG-051)
- Nozzle (300-024)
- Nut (300-021)
- Adaptor (300-018)
Specifications
| Brand | Handok |
|---|---|
| Mfr. Model | HAG-051 |
| Product Type | Automatic gun, high viscosity |
| Max Working Pressure | 5,076 psi (350 bar) |
| Body Material | Stainless steel |
| Compatible Fluids | High viscosity: adhesive, grease, PVC sol |
| Pump Type | High-pressure extrusion pumps |
| Ball & Seat | Hard metal |
| Nozzle | 300-024 (hole size can be changed to suit the job) |
| Needle | Adjustable needle distance |
| Automation | Robot and reciprocator compatible |
| Repair Kit | AT-300 |
Parts
Hover or select a drawing number or table row to highlight the matching part.
| No. | Part No. | Description | Qty |
|---|---|---|---|
| 300-001 | Screw | 1 | |
| 300-002 | Plug | 1 | |
| 300-003 | Nut | 1 | |
| 300-004 | O-Ring | 1 | |
| 300-005 | O-Ring | 1 | |
| 300-006 | Adaptor | 1 | |
| 300-007 | Nut | 1 | |
| 300-008 | Pin | 1 | |
| 300-009 | Screw | 1 | |
| 300-010 | Cap | 1 | |
| 300-011 | Spring | 1 | |
| 300-012 | Guide | 1 | |
| 300-013 | Piston | 1 | |
| 300-014 | Body | 1 | |
| 300-015 | Gland | 1 | |
| 300-016 | Head | 1 | |
| 300-017 | Packing | 3 | |
| 300-018 | Adaptor | 1 | |
| 300-019 | Gasket | 1 | |
| 300-020 | Gasket | 1 | |
| 300-021 | Nut | 1 | |
| 300-022 | Needle | 1 | |
| 300-023 | Seat | 1 | |
| 300-024 | Nozzle | 1 | |
| 300-025 | Adaptor | 1 |
Repair kit: AT-300. Parts 24 and 25 are HAG-051 only.
